Modeling method - UV curable inkjet
Available color number Full color
More than 10 million different colors
Print head On-demand piezo head (2 heads inline)
Print resolution 1200 dpi
Ink Type/Color Modeling ink: MH-100 (C, M, Y, K, White, Clear)
Support material ink: SW-110
Supply style 1L Bottle
Available modeling area
(W × D × H) 203 × 203 × 76 mm (8 × 8 × 3 in), 3 kg or less *1
Layer pitch 28 μm (standard mode)
UV Device UVLED System
3D data format SSTL, OBJ, VRML, PLY, 3MF
Software
(standard attachment) Layout Slicer: Mimaki 3D Link
Driver Software: Mimaki Printer Driver
Interface Ethernet 1000BASE-T
Noise Level Standby: 55 dB or less (FAST-A, front/rear/left/right 1 m)
Continuous operation: 65 dB or less
Discontinuous operation sound: 70 dB or less
Power supply Single-phase AC100-120V/220-240V±10%, 50/60Hz ±1Hz x1
Power consumption 350 W or less
When using deodorizer (optional): 500 W or less
Safety standard VCCI Class A / FCC Class A / ETL IEC 62368-1 /
CE Marking (EMC, Low voltage, Machinery directive, and RoHS) /
CB Report / EAC / RCM
Installation environment Temperature 20 – 30 °C (68 – 86 °F)
Relative humidity 35 – 60 %Rh (Non condensing)
Recomended Temperature 20 – 25 °C (68 – 77 °F)
Dust Places without mine dust (Dust amount 0.15mg/m³ or less) *2
Dimensions (W × D × H) 1,355 × 1,290 × 856 mm (53.3 × 50.8 × 33.7 in) *3
Weight Main Unit: 140kg (308.6 lb)
*1 With support material / The maximum build size must be within the buildable area and below the maximum weight.
*2 0.15mg/m³ or less...The numerical value of the dust quantity equivalent to the office specified by the Building Standards Act of Japan.
*3 Dedicated stand and deodorizer are optional (sold separately).
Some of the screens and printing samples in this website are artificial renderings.
Specifications are subject to change without notice.
All trademarks or registered trademarks are the property of their respective owners.
When installation and operation training etc. of products are demanded on purchasing, an extra cost would be necessary except the products cost.
Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
Delivery and Installation is available across New Zealand.
Service, Warranty and Training is also available.
Charges may apply and will be quoted upon enquiry.
Finance options are also available – speak to one of our hardware experts today!
Specification
Modeling method - UV curable inkjet
Available color number Full color
More than 10 million different colors
Print head On-demand piezo head (2 heads inline)
Print resolution 1200 dpi
Ink Type/Color Modeling ink: MH-100 (C, M, Y, K, White, Clear)
Support material ink: SW-110
Supply style 1L Bottle
Available modeling area
(W × D × H) 203 × 203 × 76 mm (8 × 8 × 3 in), 3 kg or less *1
Layer pitch 28 μm (standard mode)
UV Device UVLED System
3D data format SSTL, OBJ, VRML, PLY, 3MF
Software
(standard attachment) Layout Slicer: Mimaki 3D Link
Driver Software: Mimaki Printer Driver
Interface Ethernet 1000BASE-T
Noise Level Standby: 55 dB or less (FAST-A, front/rear/left/right 1 m)
Continuous operation: 65 dB or less
Discontinuous operation sound: 70 dB or less
Power supply Single-phase AC100-120V/220-240V±10%, 50/60Hz ±1Hz x1
Power consumption 350 W or less
When using deodorizer (optional): 500 W or less
Safety standard VCCI Class A / FCC Class A / ETL IEC 62368-1 /
CE Marking (EMC, Low voltage, Machinery directive, and RoHS) /
CB Report / EAC / RCM
Installation environment Temperature 20 – 30 °C (68 – 86 °F)
Relative humidity 35 – 60 %Rh (Non condensing)
Recomended Temperature 20 – 25 °C (68 – 77 °F)
Dust Places without mine dust (Dust amount 0.15mg/m³ or less) *2
Dimensions (W × D × H) 1,355 × 1,290 × 856 mm (53.3 × 50.8 × 33.7 in) *3
Weight Main Unit: 140kg (308.6 lb)
*1 With support material / The maximum build size must be within the buildable area and below the maximum weight.
*2 0.15mg/m³ or less...The numerical value of the dust quantity equivalent to the office specified by the Building Standards Act of Japan.
*3 Dedicated stand and deodorizer are optional (sold separately).
Some of the screens and printing samples in this website are artificial renderings.
Specifications are subject to change without notice.
All trademarks or registered trademarks are the property of their respective owners.
When installation and operation training etc. of products are demanded on purchasing, an extra cost would be necessary except the products cost.
Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
Delivery Information
Delivery and Installation is available across New Zealand.
Service, Warranty and Training is also available.
Charges may apply and will be quoted upon enquiry.
Finance options are also available – speak to one of our hardware experts today!
Product Enquiry

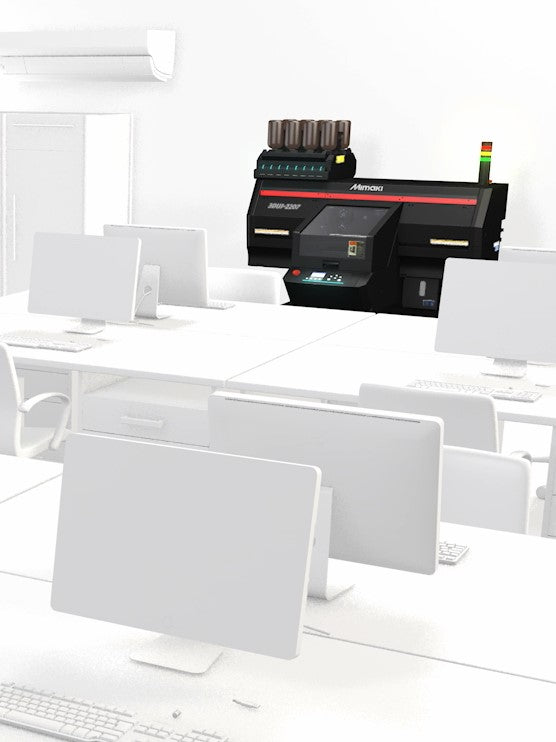

Mimaki 3DUJ-2207 3D Printer
